Wifi Fingerprint Smart Door Lock Outdoor
Wifi Fingerprint Smart Door Lock Outdoor
Description
Description
The IP66 Waterproof WiFi Fingerprint Smart Door Lock offers robust security for outdoor gates and home entrances. Featuring advanced fingerprint recognition, Bluetooth, and password access, this electronic rim lock ensures keyless entry and convenient control via the Smart app. The lock also supports card access, making it ideal for multi-user environments. Built to withstand harsh outdoor conditions, its IP66 waterproof rating ensures reliable performance in any weather. Perfect for securing homes, gates, or offices, this smart door lock integrates seamlessly with modern security systems for enhanced protection.
Specification
Specification
- Material: Zinc Alloy
- Available color: Black+Grey
- Panel Sizes: 168(mm)*34(mm)*60(mm)

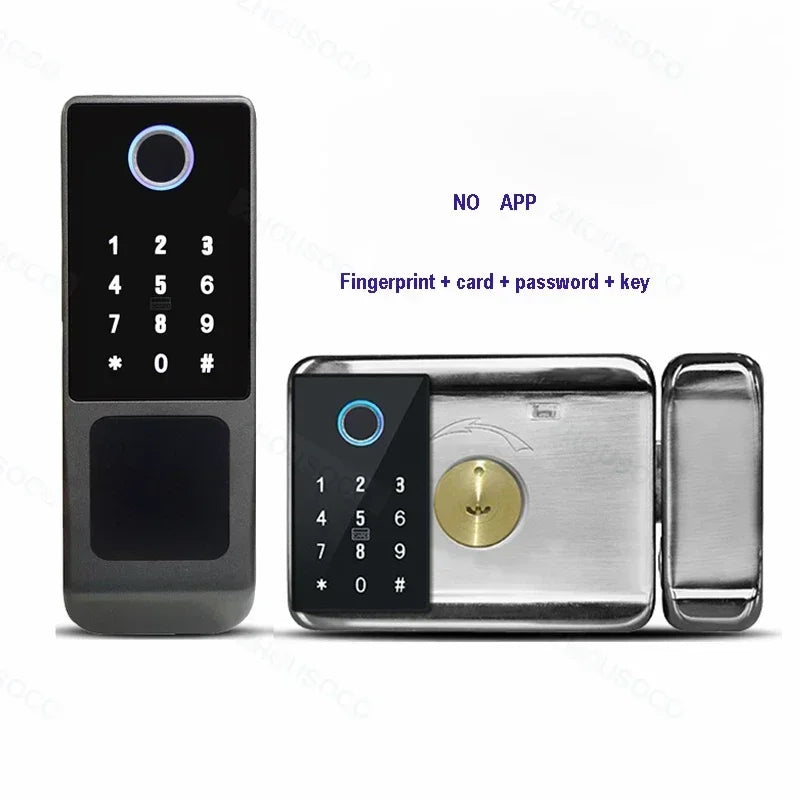

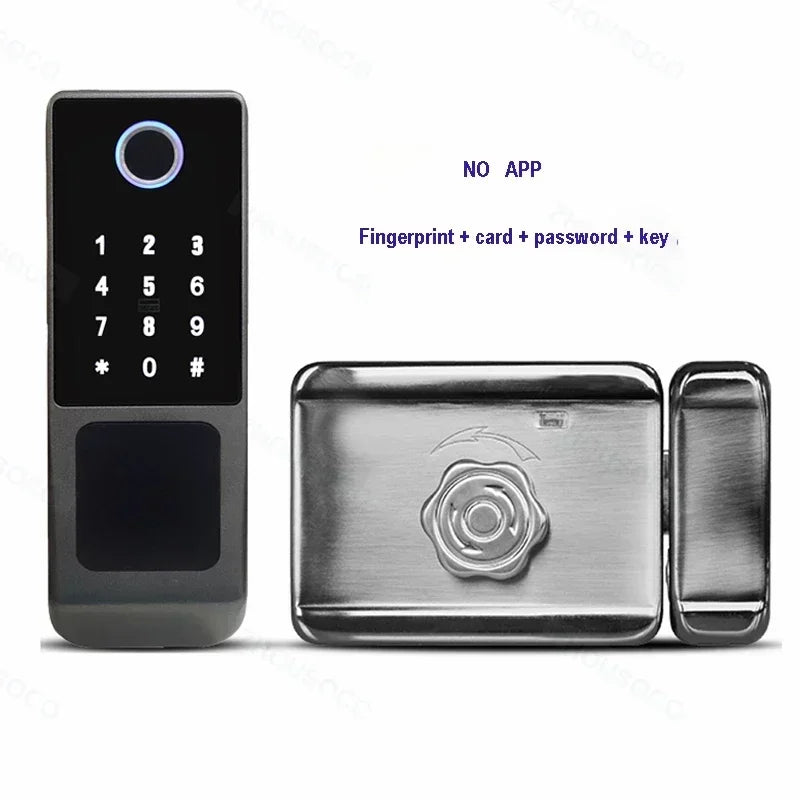

- Unlock modes: Fingerprint /Password /IC Card / APP / Mechanical Key
- Supported app name: Tuya app, TTlock app
- Fingerprint recognition time: 0.25S
- Fingerprint Users: 100pcs

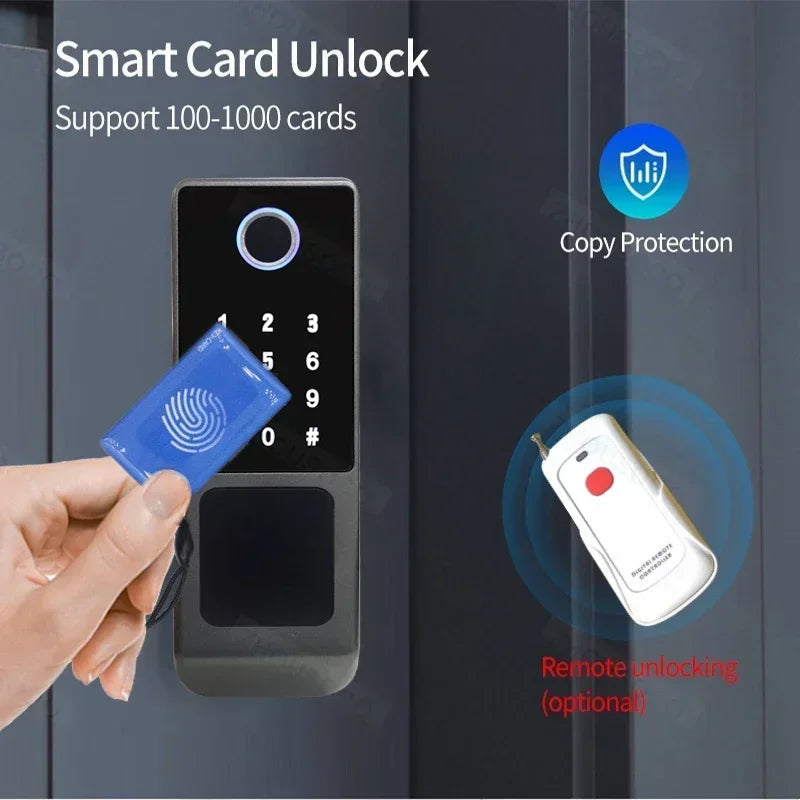

- Card Users: 100pcs
- Password Users: 100pcs
- Power supply: 4pcs AA battery or 12V DC
- Operating temperature: -25 to 55 Centigrade
- Suitable door thickness: 20-80mm( Wooden door, Steel door, Iron door, other metal doors)
- Emergency Charging: Micro USB port
- Ways To Unlock: APP
- Ways To Unlock: Bluetooth
- Ways To Unlock: Mechanical Keys
- Ways To Unlock: Card
- Ways To Unlock: WIFI
- Ways To Unlock: Password
- Ways To Unlock: FINGERPRINT
- Material: Stainless Steel
- Model Number: GJ-G23
- Power Supply: DRY BATTERY
- Suitable Door Type: Steel Door
- Suitable Door Type: Wooden Door
- Suitable Door Type: Stainless Steel Door
- Suitable Door Type: Other
- Connectivity: Bluetooth
- Connectivity: WIFI
- Suitable for Mortise: Other
- Special Features: Support Gateway
- Doorknob Function: Biometric
- Doorknob Funcition: Key & Keypad
- Finish Type: Polished
- Handle Direction: Direction Reversible
- Protection Level: IP66
- Smart home platform: Alexa
- Smart home platform: Tuya
- Smart home platform: Google Assistant
- Fit Door Thickness: 20-80mm
- Choice: yes
- semi_Choice: yes

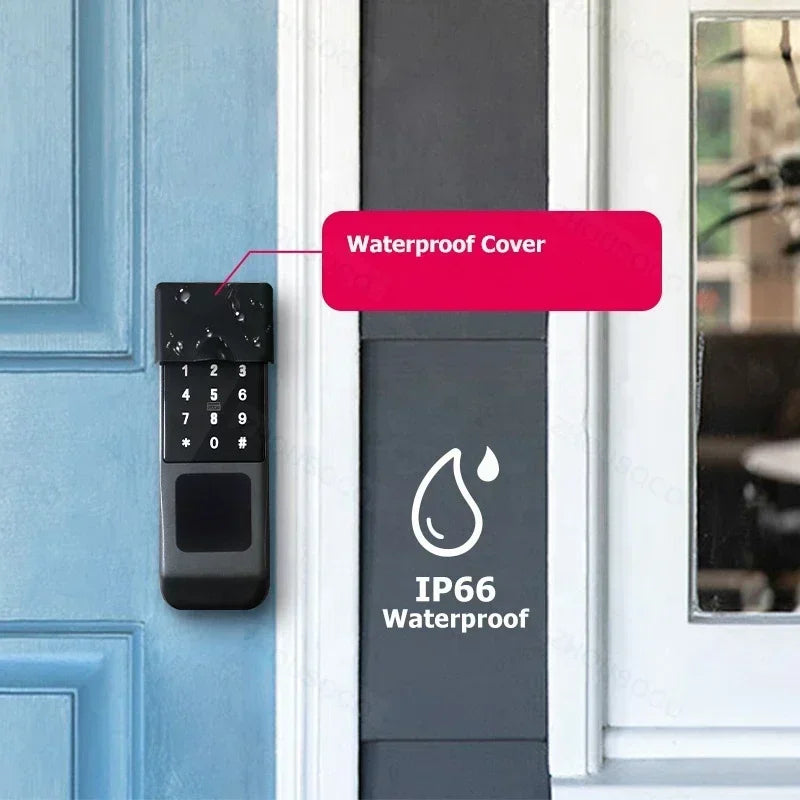

1)The front panel is equipped with a waterproof cover and silicone pad, with a better dual waterproof effect.
2)The inner lock main board is covered with waterproof glue and a waterproof rubber pad.
3)After multiple experimental tests, the lock is very safe for use in rainstorms and sunlight.
Noted:

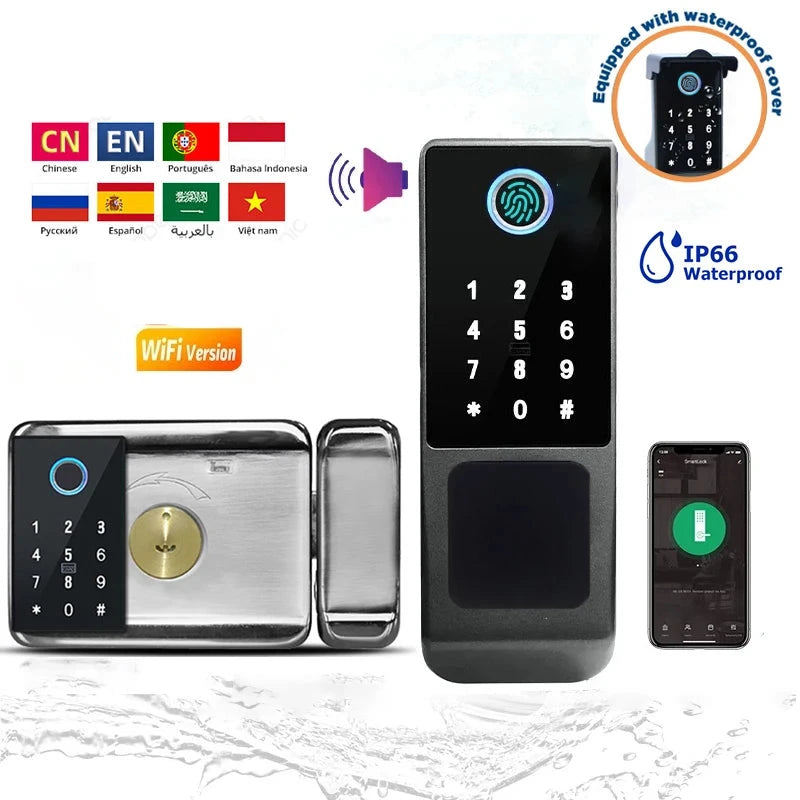

The WiFi version supports the voice system in 8 languages, but the TT Lock version does not.

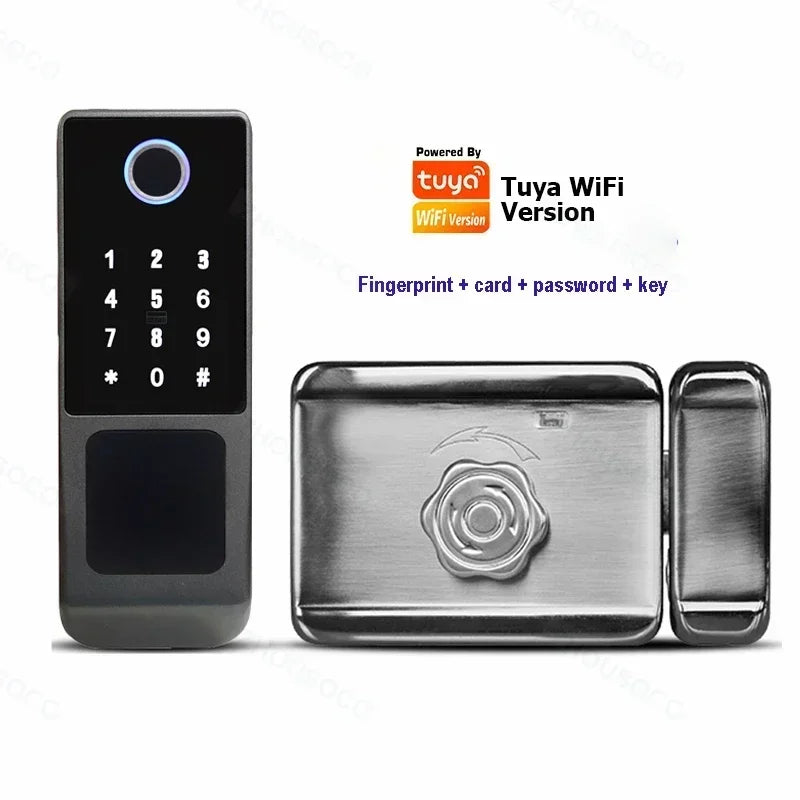

Tuya WiFi Version:8 language voices (Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vietnamese)
TO switch freely, easy to set up EASY TO SWITCH LANGUAGES
Features
Features
Feature:
About waterproofing
All options of this model come with waterproof + sun protection by default, and the surface of the device is equipped with high-strength tempered glass, which will not melt, please use it with confidence

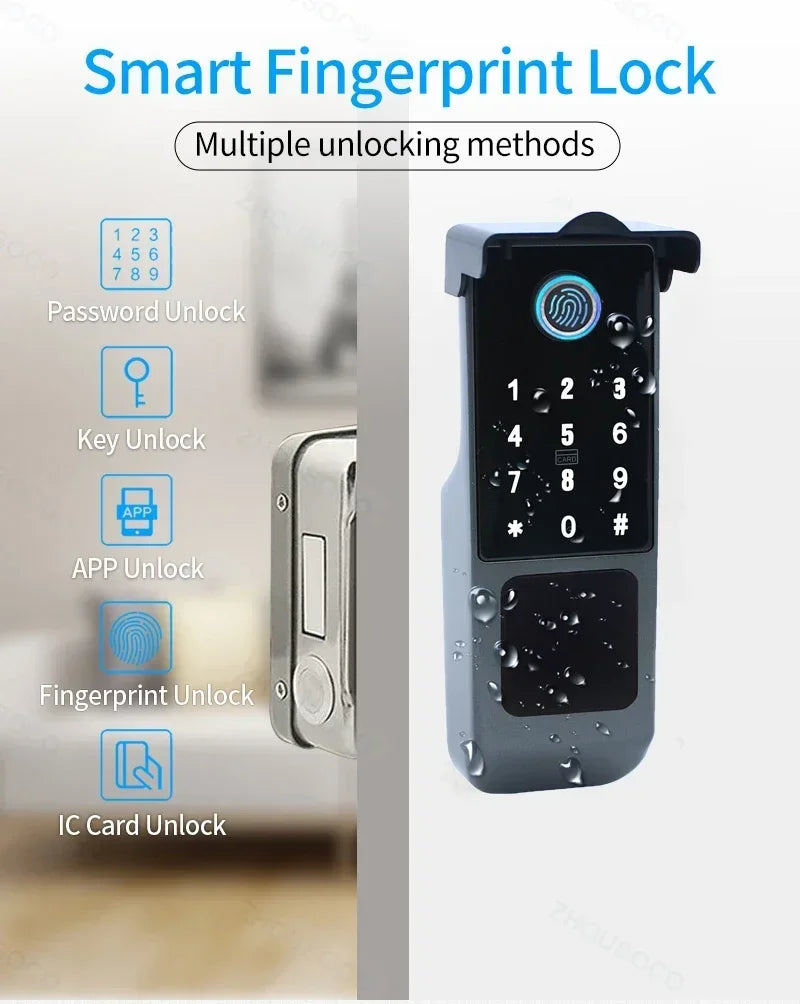

The smart door lock supports biometric fingerprint/password/IC card/mechanical key/App multiple unlocking methods.
ANTI-PEEP TOUCHSCREEN:
Add random digits to protect your passcode from prying eyes. You can type in any number of random digits on the keypad, and can still gain access as long as the 1 correct password is embedded in the longer set of numbers.

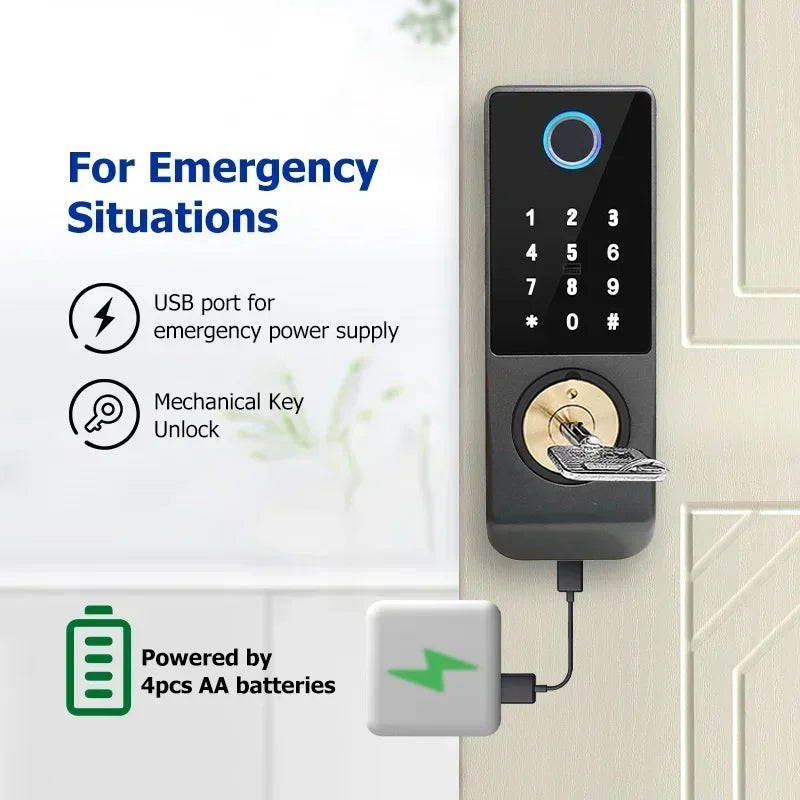

The smart door lock supports two emergency unlocking methods, mechanical key (old-fashioned unlocking method)
unlocking and USB emergency power supply. When the door lock is out of power, you can use the power bank to charge the charge about the remote control

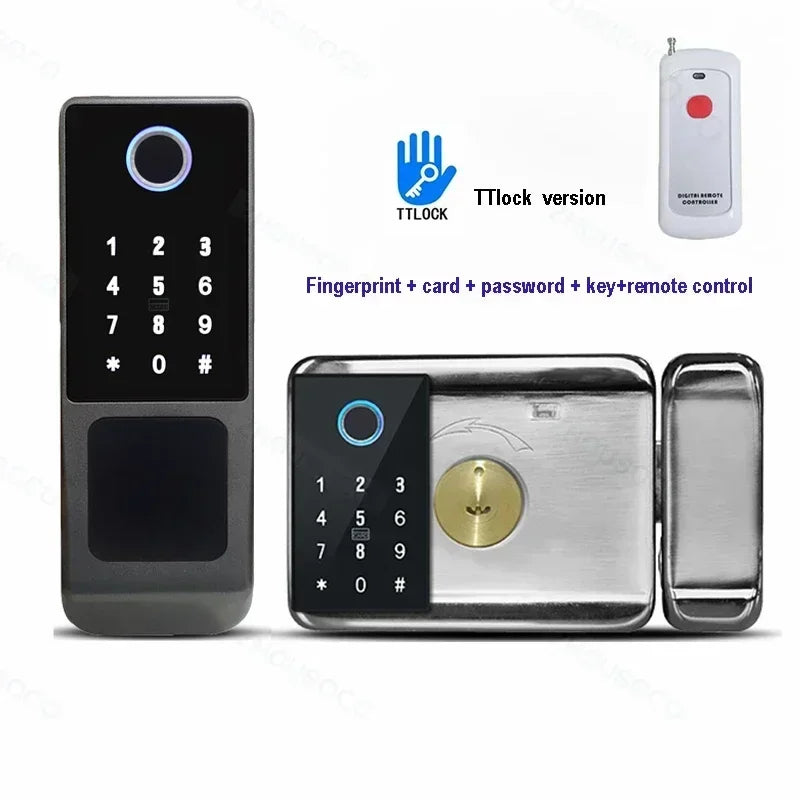

Provides a remote door-opening function. The door lock will automatically lock after closing the door. In the case of
no obstacles, the recognition distance is 30m. The maximum number of remote controllers that can be added to
each door lock is 20.
The door lock uses 4 AA batteries with a battery life of 6 months (the battery is not included in the package).
This is a multifunctional automatic door lock
1. Use home power
2. Connected to the switch and unlocked by the switch
3. Connected to the building system
Functions:
Works via WIFI, no gateway required;

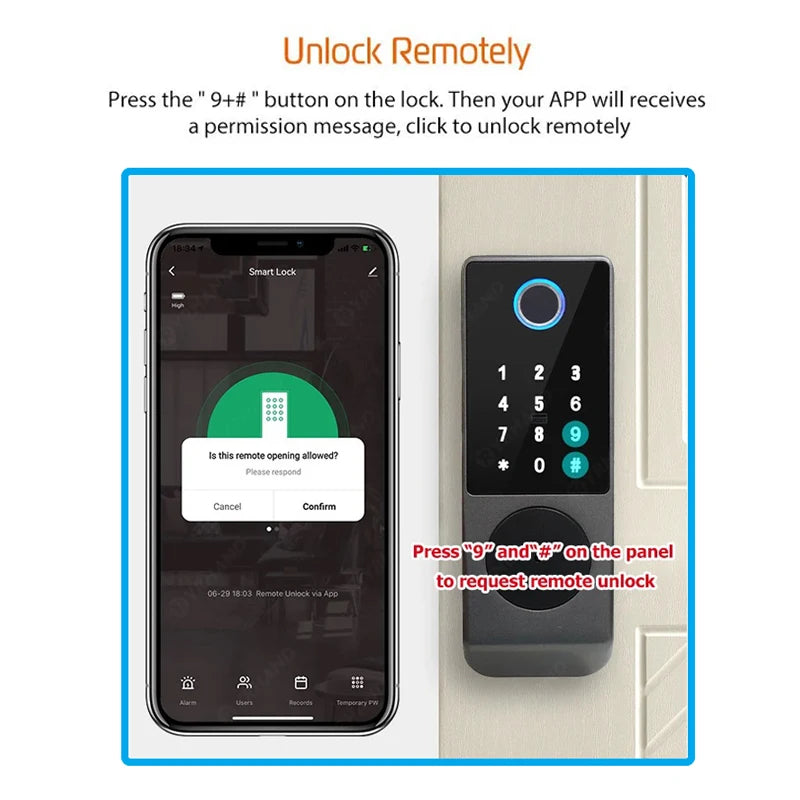

Remote unlocking needs to be triggered (9 #);
Dynamic password, one-click generation in the application;
Temporary password, free to adjust the effective use time range, no time limit;
Information records, you can freely query the use records of door locks;
Information reminder, automatically notify the mobile phone when the door lock is in use;
Universal in all regions of the world, even if you lock the door at home, in other cities/countries,
you can still use these functions if the door lock is connected to WIFI;
Please note that only outdoor keyboards support the app, indoor keyboards do not

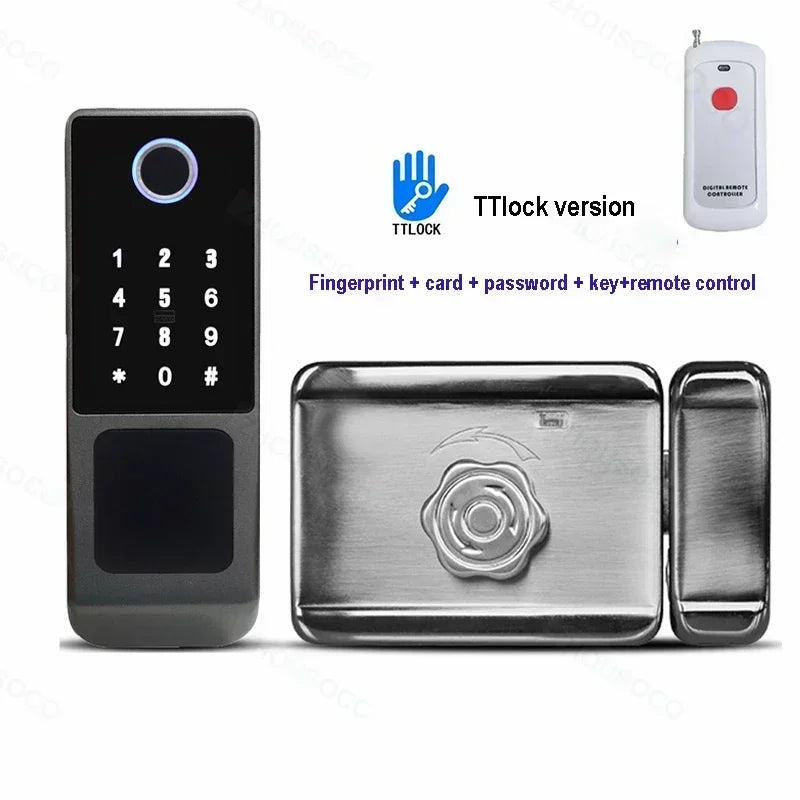

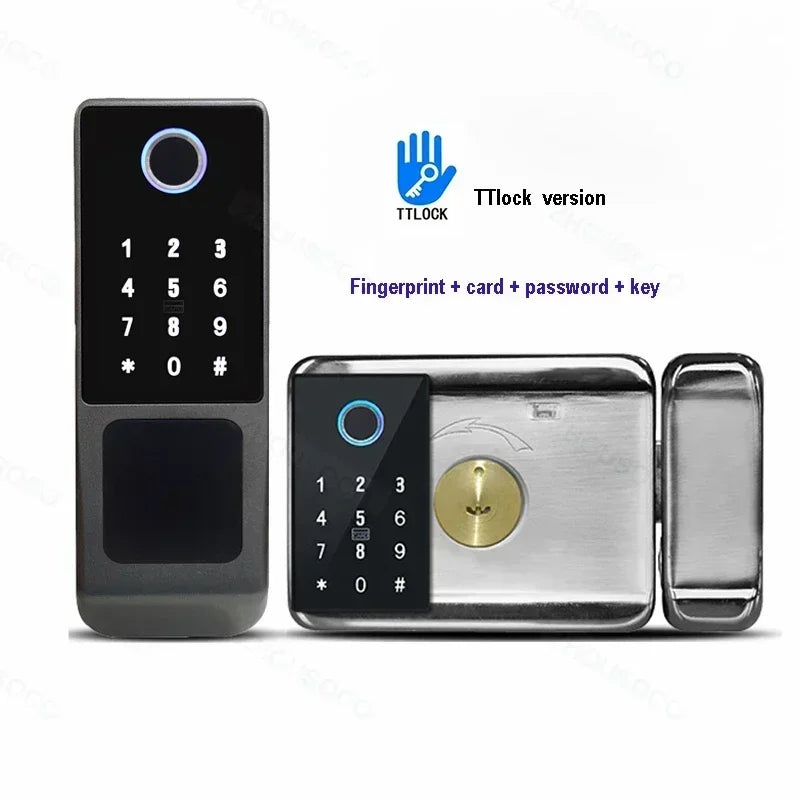

TT lock APP Functions:
1. The lock connects with the phone by Bluetooth.
2. Send temporary/key password remotely
3. You can open the lock / manage the lock (add user / delete user / set password and so on)
4. The lock app can be used both indoors and outdoors
5. Add a G2 gateway if a WiFi connection is required (Gateway buy extra)"
After adding a gateway connected to Wifi that can work with Alexa and Google Assistant
Password Anywhere:
You can generate multiple types of passwords and share them with others to get in your house when you are not at home.
Access Alert & Attendance Record:
Record the opening time, method, and personnel of each time. Also for company records employee attendance.
● Order TT Lock options and contact the seller to buy gateway G2 extra. The smart lock can connect to WiFi
and be controlled by an intelligent voice system with other smart home devices to achieve a smart home.
Connection method:
★ The lock can be connected directly with the Bluetooth of the mobile phone
★ Add a G2 gateway if a WiFi connection is required (Gateway buy extra)"
The gateway can make it connect to wifi and be compatible with Alexa and Google Home
If add a gateway that can connect to Wifi, can delete users, open locks, checking to unlock records remotely without distance limitation.
(Gateway buy extra). Click the below picture to buy stock gateway.
Product Extra Detail
Product Extra Detail
Package including:
1x front lock panel
1x rear lock panel
1 x lock mortise
2 x RFID cards
2 x mechanical keys
1 x user manual
1 x screws kits
About FAQ (Frequently Asked Questions)
Q1: waterproof and sunscreen?
A: Yes, each version of this model is waterproof and sun-proof, and the surface of the door lock is made of tempered glass, which can work in high temperatures/direct sunlight/rainstorms,s, and other environments;
Q2: Can I use it with other devices? Such as intercom, door open button?
A: Not necessarily, we can't guarantee it can be used, but we will provide an extra cable head in the express for your convenience;
Q3: What is the working distance of the remote control?
A: The usage distance in the actual test is about 40m. Of course, it is in the absence of obstacles. If there are obstacles, the usage distance will be weakened, but it will not affect your usage;
Q4: How about the product packaging?
A: Our packaging measures are very perfect. The total logistics packaging is sponge + product box + carton + waterproof tape wrapped all over. This is to avoid factors such as violent logistics, rain, ice, and snow in international transportation, please rest assured;
Q5: Can I use rechargeable batteries?
A:No, this lock can only use ordinary alkaline dry batteries, because the voltage of rechargeable batteries will decrease with the decrease of power, which cannot support the normal operation of the door lock
Q6: Does the waterproof mainly depend on the waterproof cover?
A: No, the waterproof cover is only to prevent the fingerprint recognition area from being splashed with water, because it will affect the recognition rate of fingerprints; waterproof mainly relies on hardware and a waterproof main board, and the main board of this lock has been covered with waterproof glue.
